Description

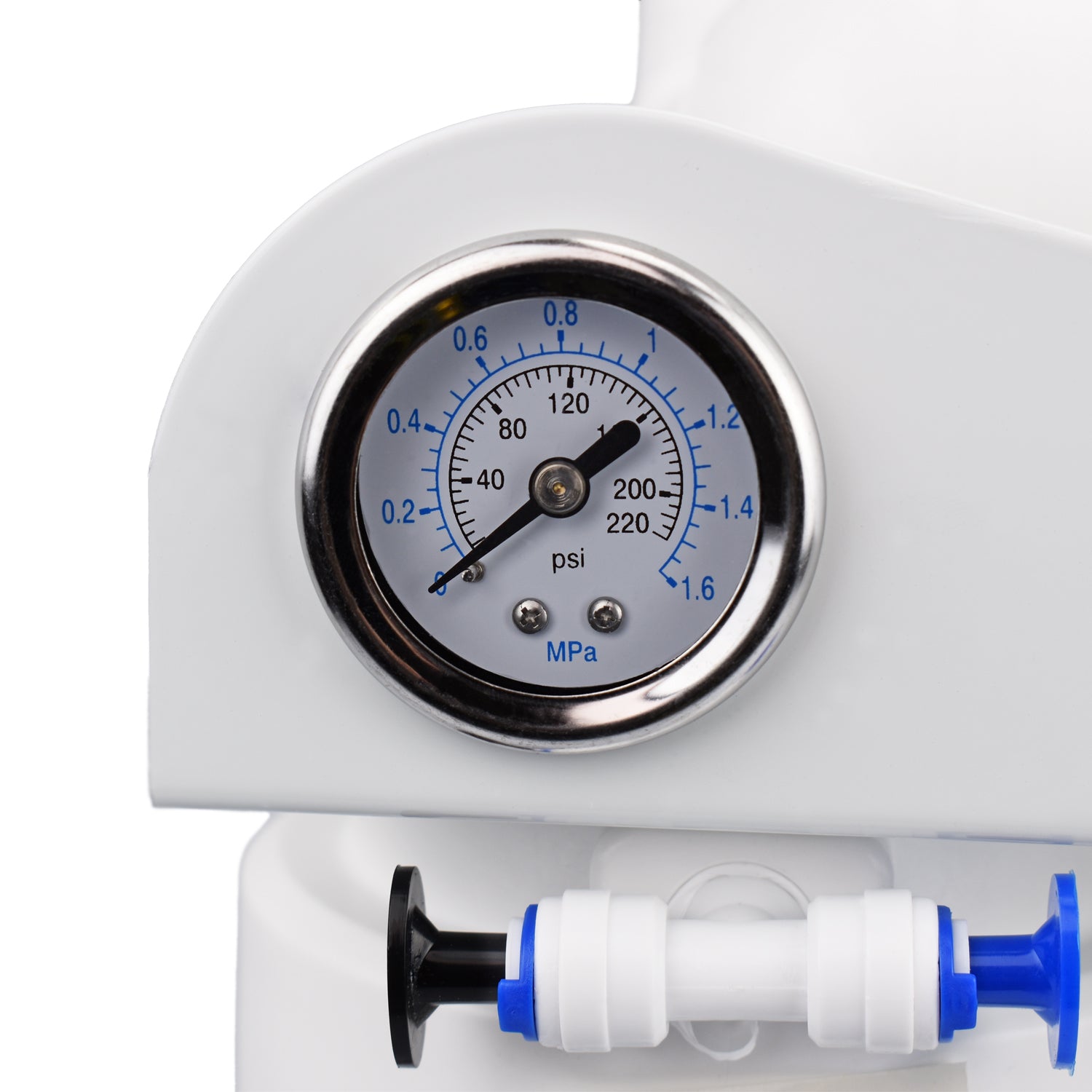

The Osmosy4 Pro system, branded Aqpet, is designed for aquariums and for all other uses where it is necessary to produce very pure water , free from any contaminants and completely deionized with a post-treatment with deionizing and anti-silicate resins of the latest generation of nuclear grade with color change. The new version includes a convenient release system for the deionizing cartridge , via special valves, which allows it to be isolated to avoid rapid exhaustion in phases in which the TDS output values are high. The system is also equipped with a predisposition for the simplified assembly of a TDS IN/OUT meter . The presence of a pressure gauge on the mains water line allows you to monitor the pressure for correct operation of the system.
4-stage filtration
By applying pressure, the membrane allows the separation, through an osmotic process , of unwanted elements providing pure water. The average reduction of unwanted substances is estimated at around 96-98% reduction. The system is also equipped with two cartridges, 5um sediment and carbon , which have the purpose of carrying out a chemical and mechanical pre-filtering before the water can be treated through the membrane, this guarantees higher quality of the output values and longer life of the system itself. Finally, there is an additional cartridge containing mixed bed resin which has the purpose of almost completely reducing the output TDS values by reducing NO3-, PO43-, SiO4.
Cartridges
- VONTRON MEMBRANE
To be inserted into the appropriate empty cartridge on the upper part of the osmosis system, it is ideal for removing dissolved inorganic salts, heavy metals, organic matter, bacteria, viruses and harmful minerals that aggregate in the treatment of running water.
- SEDIMENTS
The sediment cartridge retains particles such as sand, rust, microorganisms, scales etc. making the water clean, clear and free from suspended material.
- ACTIVATED CARBON
The cartridge is made of high quality activated carbon to remove chlorine, harmful contaminants and pesticides from the water making the water clear and free from dangerous substances.
- DEIONIZING RESIN
Cartridge made of high quality mixed bed deionizing resin, for the reduction of dissolved solids and carbonate hardness as well as other dissolved materials.
FlushValve included
The system is equipped with a valve that allows periodic washing of the membrane in a convenient and fast way. This operation has the purpose of significantly extending the operating life of the membrane and guaranteeing the quality of the output values.
Resin cartridge insulation system
The new version of the Osmosy4 Pro system is equipped with a cartridge release system , via two valves, with which the user can isolate the deionizing resin during the washing, first start-up, cartridge and/or membrane replacement phases or when required in particular operations.
TDS Meter IN/OUT Connection (Optional)
The system is designed for the connection of a TDS IN/OUT meter ( to be purchased separately as an optional ), which allows, once connected via the appropriate fittings, to monitor the exhaustion status of the TDS resin . In particular, it is possible, via the meter, to evaluate the TDS values present at the resin inlet (osmotic water exiting the membrane) and the values resulting from the passage through the resin itself, in order to intervene for any replacements.
Instructions for use
For correct operation and maintenance of the system, please read the instruction manual included in the package carefully.
Main features
- 10" glass system
- 4-stage filtration
- Sediment and carbon cartridges
- Highest quality Vontron membrane
- Including color-changing resin
- Flush Valve System
- TDS meter provision
- Production of pure and clear water
Available models
- Osmosy4 Pro 50 GAL-190 L/day
- Osmosy4 Pro 75 GAL-270 L/day
